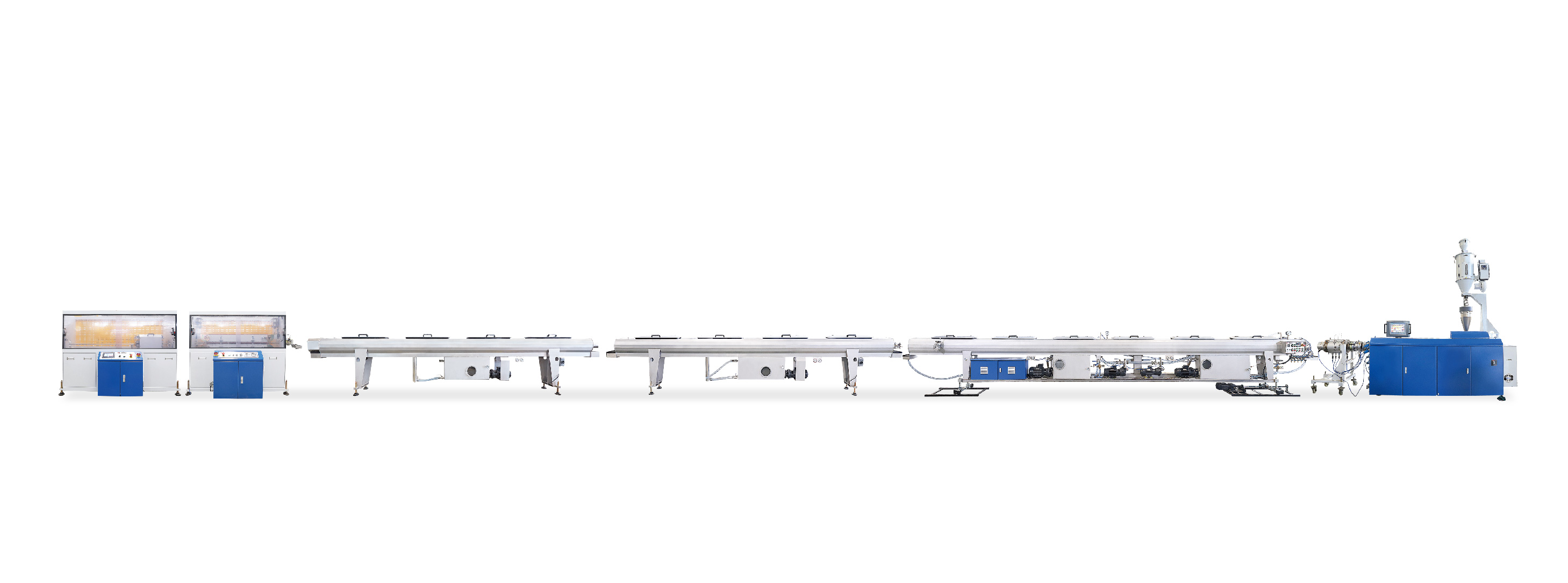

Mono layer PPR solid pipe line

Liansu developed and provides different types of PPR pipe extrusion lines.Pipe diameter range from 16 to160mm which can meet the needs of PPR single-layer, double-layer, three layer and four-layer co-extrusion pipes. Downsteam can be matched with on line automatic Bundling and Packaging machine.

φ16-φ160

Size range(mm):

200-350

Max output(kg/h):

Get A Quote

CONFIGURATION

Single Screw Extruder

Pipe Head

Vacuum Forming Tank

Haul-off Unit

Cutting

Packing

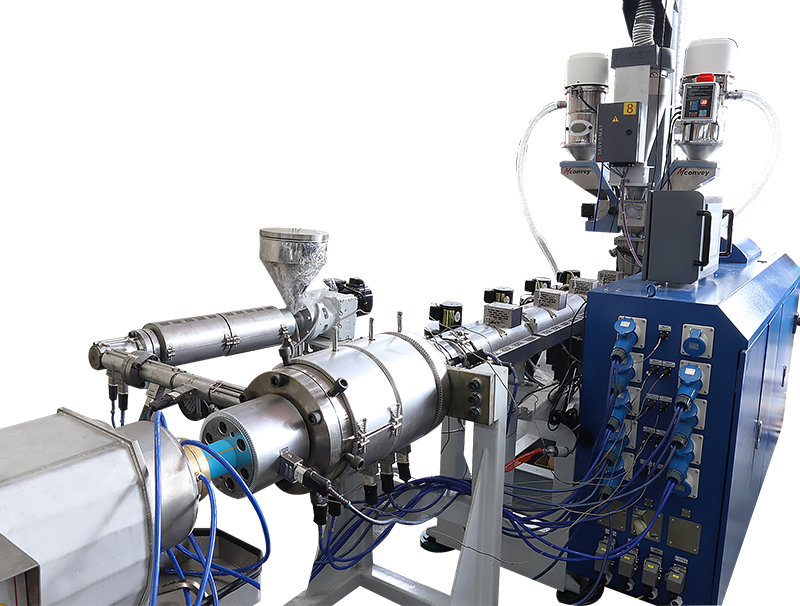

Single Screw Extruder

Adopt screw design with large 40 L/D ratio to achieve high output and energy saving. The extruder can be integrated with online gravimetric doser for masterbatch.

Pipe Head

Spiral die head structure, uniform wall thickness.The setting die adopts sleeve structure, forced water cooling at the inlet, high speed and stable.

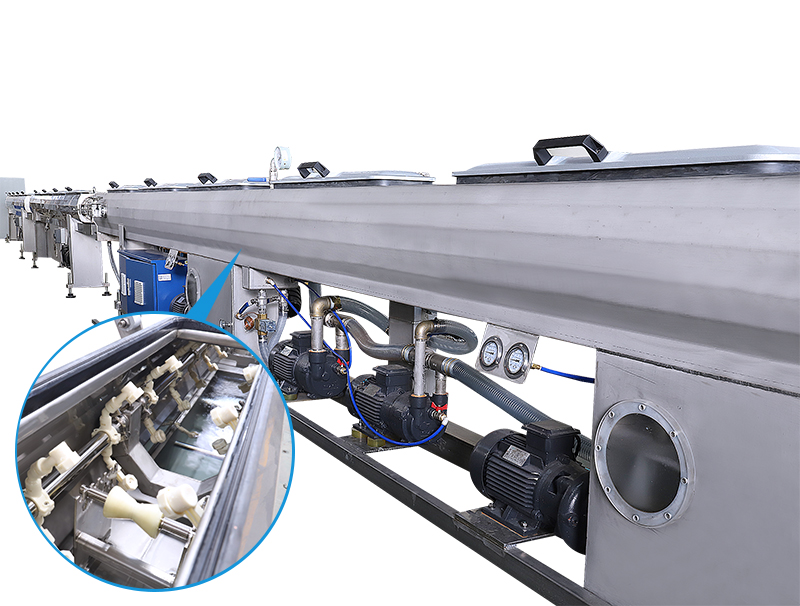

Vacuum Forming Tank

Adopts automatic negative pressure closed-loop control system to ensure stable pipe forming, energy saving and noise reduction.

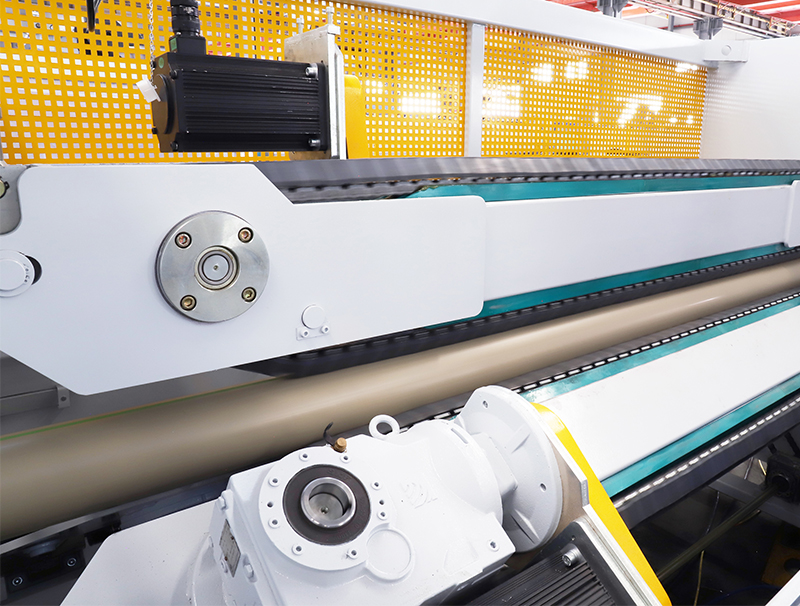

Haul-off Unit

Permanent magnet synchronous motor and high-speed hauling belt are used to ensure a stable speed regulation range of more than 50 times and realized high speed production.

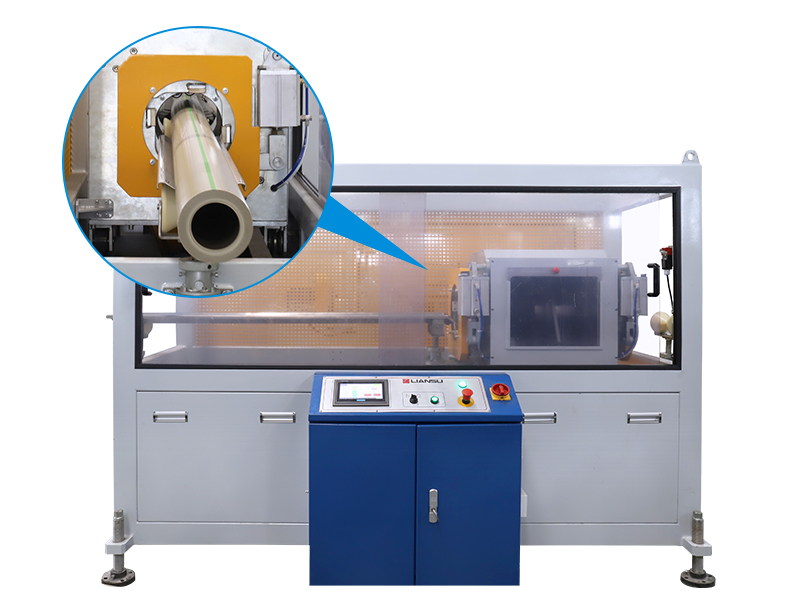

Cutting

Rotary swarfless cutter or flying knife swarfless cutter for option, precised cutting length control.

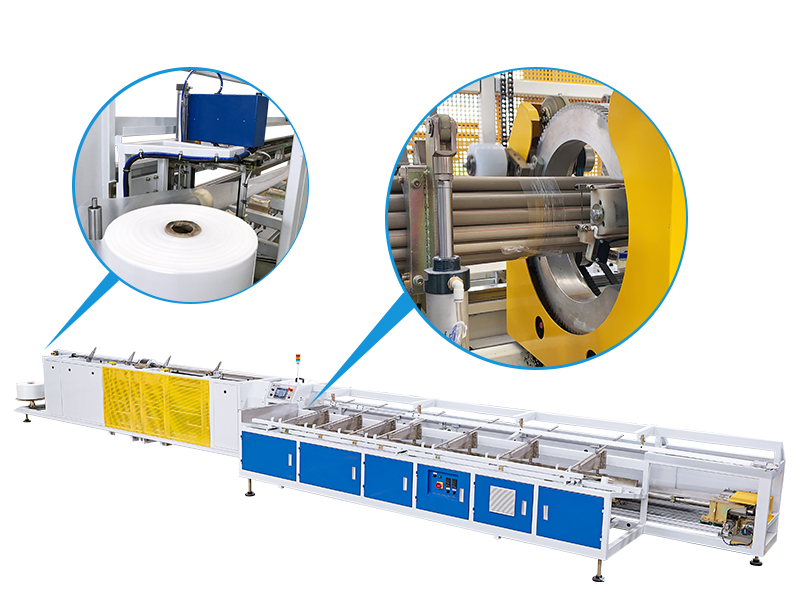

Packing

The whole series of online auto packing device realized on line auto bundling and bagging, on line weighing system before bundling ensured the quality of pipe before packing, greatly improve efficiency and reduce labor investment.

Mono layer PPR solid pipe line

φ16-φ160

200-350
